E-poster Series

You are here：Home > Products > E-poster Series

Product Type

Lithium Battery Battery-Powered Vehicle LED Products LCD Products 3D Hologram Fan

E-poster Series

PRODUCT INTRODUCTION：

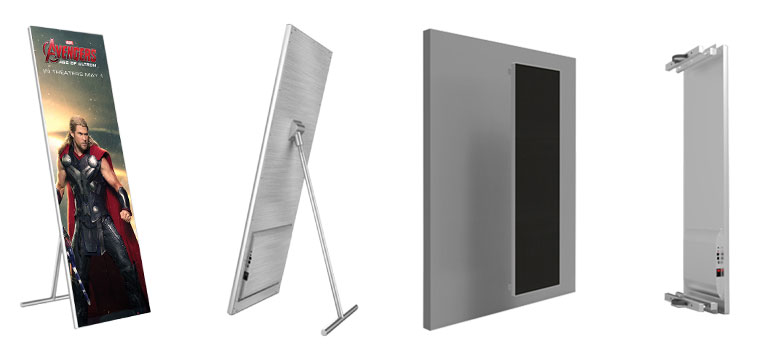

E-poster series are smart, sleek and simple, widely used in varied filed.

It has hot swappable front access module and cableless connection. And the intelligent content monitoring & management is able to create the awesome image.
Our 2.5mm pixel pitch display is truly seamless and the absence of distracting bezels empowers you to exploit your impactful signage content.
Besides, it’s easy to upgrade to smaller pixel pitch in future.

PRODUCT FEATURES：

High versatility for every space

Configurations can be costomized

More outer frame colour to choose

Indoor & Fixed & Rental

Parameters	E-poster Series
Pixel Pitch	2.571mm
Modul Size	288×216
Display Resolution	224×756
LED Configuration	SMD 3 in 1
Pixel Density	169,344pixels/panel

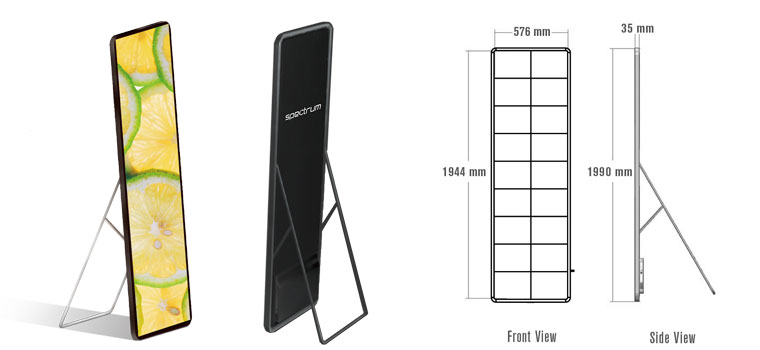

Display Dimension ( W×H×D )	576×1,944×35 mm
Panel Material	Aluminum
Outer Frame Colours	7
Weight	35kg
Brightness	≥1,200cd/m²
Drive Mode	1/28 scan
Viewing Angle	160° (H) / 160° (V)
Display color	281Trillion
Processing Depth	16bits
Refresh Rate	＞3840Hz
Contrast Ratio	3,000 : 1
Operation Power	AC110~240V, 50/60Hz
Max. Power Consumption	600W/panel
Ave. Power Consumption	240W/panel
Display Mode	Asynchronous / Synchronous System
Signal Output	HDMI
Connection Type	Ethernet / WIFI
Support VGA Mode	224×756
Support Video Files	MPEG / H.264
Operating Temperature	-20℃ to +40℃
Operating Life	≥100, 000hours
Certificate	CE

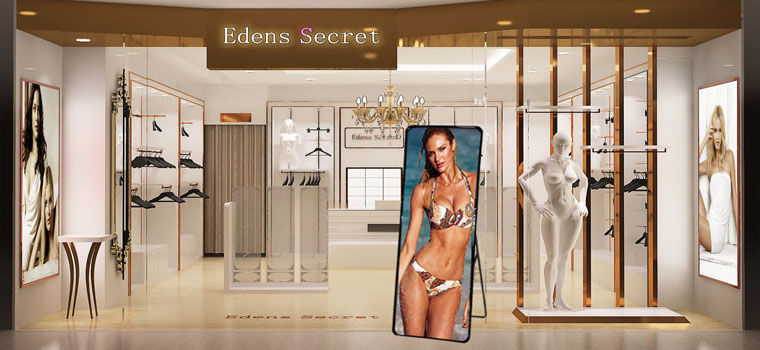

APPLICATION：
Office、Shopping mall、Hotel、Museum、Convenient store、Theater、4s shop、Show room
