Dance Floor Series

PRODUCT INTRODUCTION：

Dance floor series are widely used in variety fields. It takes very Sturdy aluminum alloy and strong mask and can be trampled directly. Modularized design makes it’s easy to setup and take down. iMagic is the perfect solution for concert, exhibition, nightclub, bar disco and shopping mall.

PRODUCT FEATURES：

Strong bearing: 1000KG/m² high loading support;

Easy maintenance: No need to disassemble the cabinets nearby when changing a cabinet;

IP65/43: Anti-water, anti-drinks spill;

High contrast ratio: Patented mask design makes clear images;

Excellent cooling design: Professional cooling system, ensure a perfect heat dissipation;

Multi-touch function.

Parameters	Dance Floor Series
Pixel pitch	6.25mm	8.9286mm
LED configuration	SMD2727	SMD3535
Pixel density	25,600dot/m²	12,544dot/m²

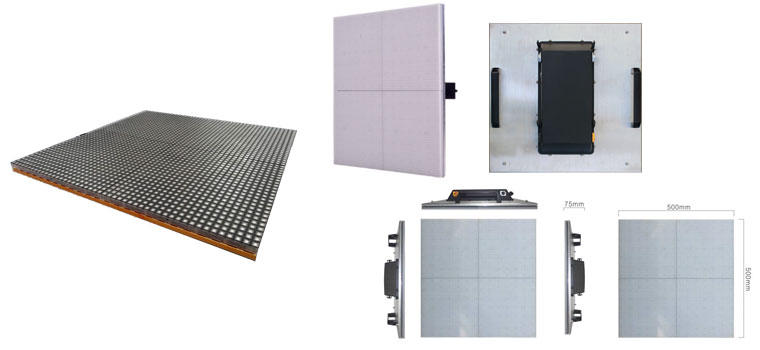

Module size	250×250mm
Cabinet dimension	500mm×500mm×75mm
Cabinet weight	11.5kg/panel
Brightness	3,000~3,500CD/m²
Max. power consumption	600W/m²
Ave. power consumption	240W/m²
Refresh rate	≥1,920Hz
IP rating (front/back)	IP65 front, IP43 rear
Operating power	AC110~240V, 50/60Hz
Display lifetime	≥100,000h

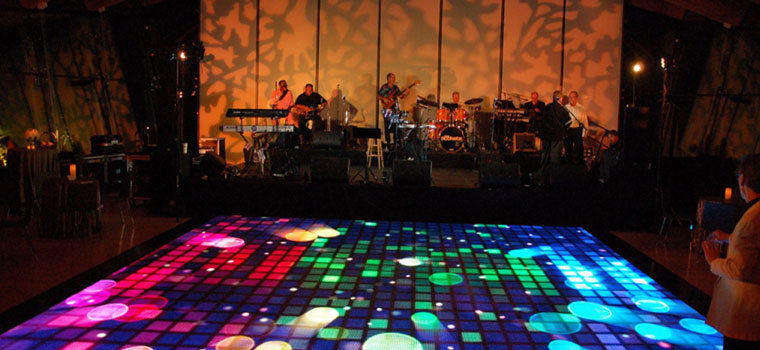

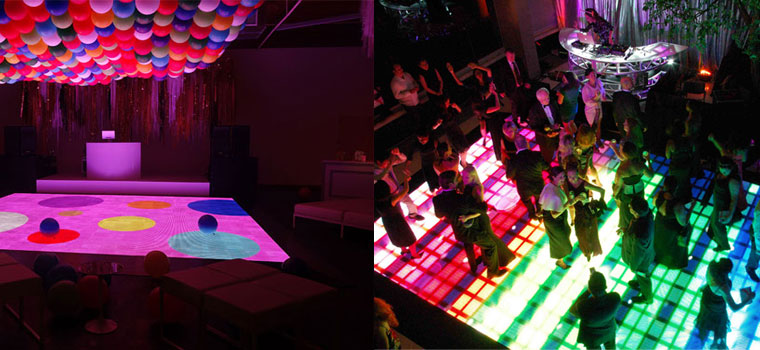

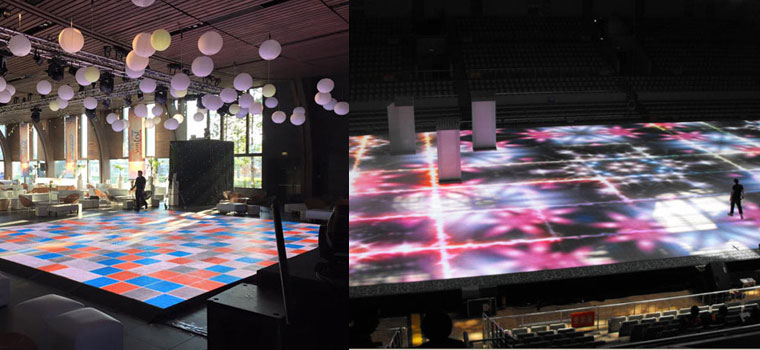

APPLICATION：

Hotel、Shopping mall、Bar、Museum、Building、Stage、4s shop、Show room
