Outdoor SMD Series

You are here：Home > Products > Outdoor SMD Series

Product Type

Outdoor SMD Series

PRODUCT FEATURES：

Customized design, stable quality

High performance, cost effective

Long lifespan up to 100, 000 hours

Low power consumption, energy saving

Easy to maintenance and control

Low operation cost

Short leading time for fast delivery

Parameters	Advertising Outdoor SMD Series
Pixel pitch	4.81mm	6mm	8mm	10mm
Pixel density	43,222 pixel/m2	27,777 pixel/m2	15,625 pixel/m2	10,000 pixel/m2
Pixel configuration	SMD2727	SMD3535	SMD3535	SMD3535
Cabinet size(mm)	1000mm X 1000mm	768mm X 768mm	768mm X 768mm	960mm X 960mm
Cabinet size(ft)	3.28ft X 3.28ft	2.52ft X 2.52ft	2.52ft X 2.52ft	3.15ft X 3.15ft
Cabinet area	1m2	0.5898m2	0.5898m2	0.9216m2
Cabinet area	10.76sqft	6.35sqft	6.35sqft	9.92sqft
Cabinet resolution	208 x 208	128 x 128	96 x 96	96 x 96
Module dimension (WxH)	250mm x 250mm	192mm x 192mm	256mm x 128mm	320mm x 160mm
Module resolution (WxH)	52 x 52	32 x 32	32 x 16	32 x 16
Brightness	≥6000nit	≥6500nit	≥6000nit	≥6000nit
Best viewing distance	>5m	>6m	>8m	>10m
Contrast ratio	4000:1	4000:1	4000:1	2000:1
Driving way	1/13 scan	1/8 scan	1/4 scan	1/2scan
Max. power consumption	700 W/m2	800 W/m2	800 W/m2	700 W/m2
Ave. power consumption	210 W/m2	240 W/m2	240 W/m2	210 W/m2
Viewing angle (H/V)	140°/ 140°
Colors	281T
Gray scale	16bit
Refresh rate	>1920Hz
Display lifetime at 50% brightness	100,000h
Display lifetime at full white	50,000h
Input voltage	AC90-240V
Operating voltage	DC 5V
Operating ambient temperature	-20~50°C
Operating ambient humidity	10%~90%
Cabinet material	Iron
Cabinet weight	50kg/sqm
Ingress protection level	IP65/IP54

APPLICATION：

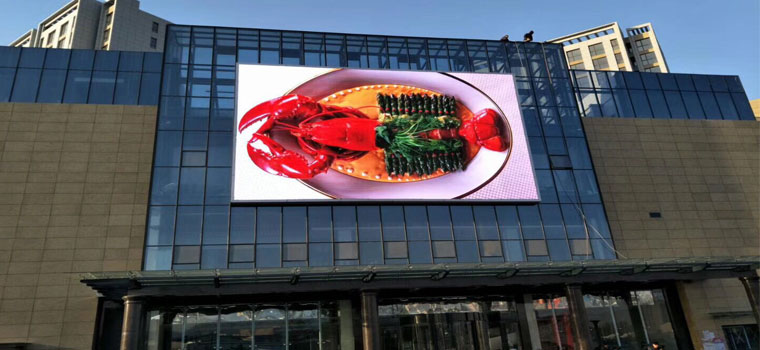

Building、Shopping mall、Train station、Stadium、Highway、School、Airport
