Outdoor DlP Series

You are here：Home > Products > Outdoor DlP Series

Product Type

Outdoor DlP Series

PRODUCT FEATURES：

Customized design, stable quality

High performance, cost effective

Long lifespan up to 100, 000 hours

Low power consumption, energy saving

Easy to maintenance and control

Low operation cost

Short leading time for fast delivery

Parameters	Advertising Outdoor DIP Series
Pixel Pitch	10mm	16mm	20mm
Pixel Density	10,000pixel/m²	3,906pixel/m²	2,500pixel/m²
Module Dimension	320×160mm	256×256mm	320×160mm
Module Resolution	32×16dots	16×16dots	16×8dots
Cabinet Dimension	960×960×160mm	1,024×1,024×160mm	960×960×160mm
Cabinet Resolution	96×96dots	64×64dots	48×48dots
Cabinet Area	0.9216㎡	1.049㎡	0.9216㎡
Cabinet Weight	48kg	56kg	48kg
Brightness	8,500nit	11,000nit	7,500nit
Refresh Rate	≥3,840HZ	≥3,840HZ	≥3,840HZ
Max.consumption	550W/㎡	600W/㎡	400W/㎡
Ave.consumption	165W/㎡	180W/㎡	120W/㎡
Drive Method	1/4 scan	Static	Static
Best View Distance	10-100m	16-160m	20-200m
Viewing Angle	140°/70°
Grey Scale	16bit
Colors	281T
Contrast Ratio	3,000:1
Color Temperature	6500K
Operating Temperature	﹣20℃～50℃
Operating Humidity	10%~90%
Cabinet Material	Iron
Ingress Protection Level	Front: IP65 Rear: IP54
Input Voltage	AC90-240V
Life Span	≥100,000 H

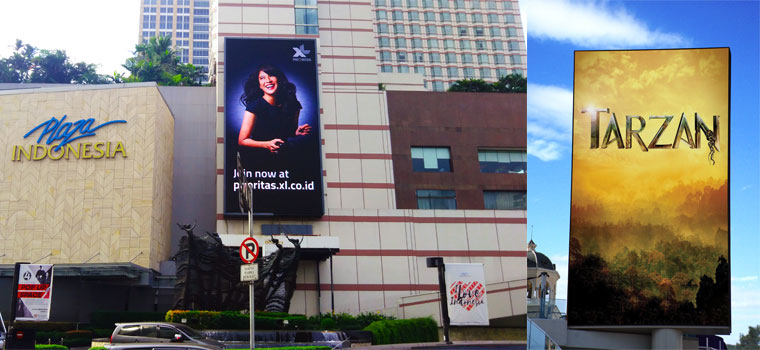

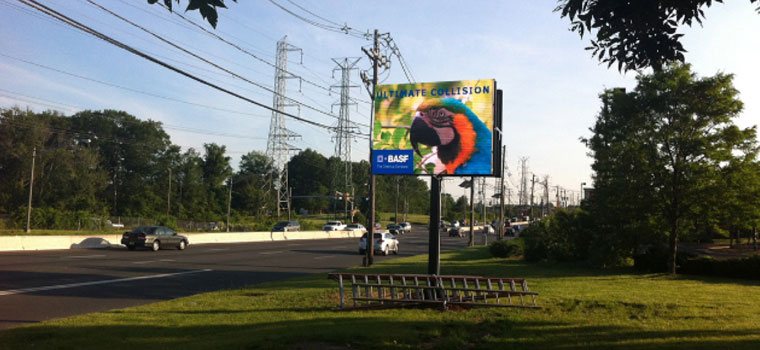

APPLICATION：

Building、Shopping mall、Gas station、Stadium、Public community、Road side、Highway、Landmark
